Digital Displaying PVC Melting Point Tester, Melt Flow Index Tester
Product introduction
Melt Flow Rate Instrument MIP meets the demands of GB/T3682-2000, as well as ISO1133-97, ASTM D1238,JIS K7210 and other standards involving main parameters. The melt flow indexer is suitable for measuring melt mass flow rate(MFR) and melt volume flow rate(MVR) of plastic materials such as polyethylene, polypropylene, polystyrene, ABS, polyamide, fiber resin, acrylic, POM, fluorine plastic, polycarbonate. It is widely used in plastic production, plastic products, petrochemical industries and related institutions, research institutes and inspection departments.
Software features
A. High-precision color controller in English and Chinese; special customized membrane keypad; incomparable advantages in the control precision and service life.
B. Automatic cutting, accurately up to 0.1s; setting the cutting time and the number of cutting freely.
C. Built-in mini printer to print the test data
D. Dual temperature control system:double imported heating coil, double imported PT100 platinum resistance sensor, independent temperature control of the upper and lower sections, to improve the test accuracy and stability of temperature.
E. Increasing displacement sensor, able to testing MVR , the precision up to 0.001mm.
Performance standards
| Brand | DahoMeter |
| Model | DH-MI-BP | DH-MI-VP | DH-EI-BP | DH-EI-VP | DH-AI-VP |
| Weight loading method | Manual | Manual | electric | Electric | Automatic |
| Testing result | Mass | Mass and volume | Mass | Mass and volume | Mass and volume |
| MFR | MFR and MVR | MFR | MFR and MVR | MFR and MVR |
| Outlet diameter | Φ2.095±0.005mm,Outlet length:8.000±0.025mm |
| Loading cylinder diameter | Φ9.550±0.007mm,Loading cylinder length:152± 0.100mm |
| Piston head diameter | Φ9.475±0.007mm,Piston head length:6.350±0.100mm |
| Standard test load | A total of 8 full set of weights |
| Temperature control range | Room temperature～400℃(Optional～500℃) | Room temperature ~500℃ |
| Temperature control resolution | 0.1℃ | 0.1℃ | 0.1℃ |
| Constant temperature accuracy | 0.5℃ | 0.5℃ | 0.2℃ |
| Displacement resolution | None | 0.001mm | 0.001mm |
| Temperature control 4h drift | No less than ±0.5℃ |
| Cartridge temperature recovery time after feeding | ≤4min |
| Clock range | 0～6000s |
| Clock resolution | 0.1-1s |
| Countdown time setting | Freely set |
| Automatic cutting device | Set the interval time (any adjustable from 2 to 2000s) ,automatically complete the cutting |
| Jog cutting device | Manual button electric cutting |
| Manual cutting device | Manually rotating the handle to cut |
| Weight load accuracy | ≤±0.5% |
| Weight load range | 325-21600g discontinuous, combined load can meet standard requirements |
| Measuring range | 0.1～100g/10min |
| Power supply | AC220V / 50HZ or AC110V /60HZ; Choose different power supply voltages |
| Net weight | 48KG |
| Gross weight | 63KG |
|
|

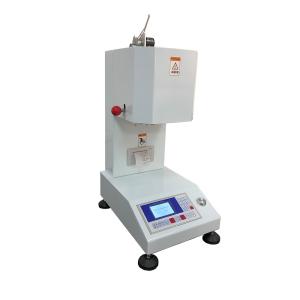

Digital Displaying PVC Melting Point Tester, Melt Flow Index Tester Images
|
